Product Details:
- Product Type Steel Coil Slitting Lines
- General Use Industrial
- Material Other
- Color Green
4000000 INR/Piece
X
Slitting Lines Price And Quantity
- 4000000 INR/Piece
- 01 Piece
Slitting Lines Product Specifications
- Other
- Steel Coil Slitting Lines
- Industrial
- Green
Slitting Lines Trade Information
- 10 Piece Per Month
- 1 Months
- Western Europe, Central America, Asia, Australia, Middle East, South America, Eastern Europe, North America, Africa
- All India
Product Description

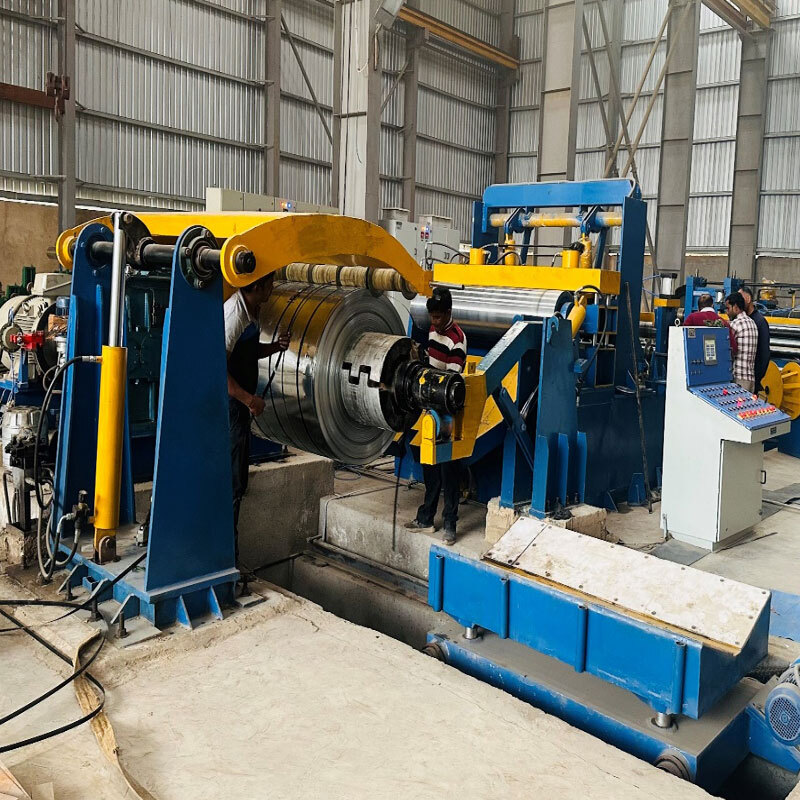

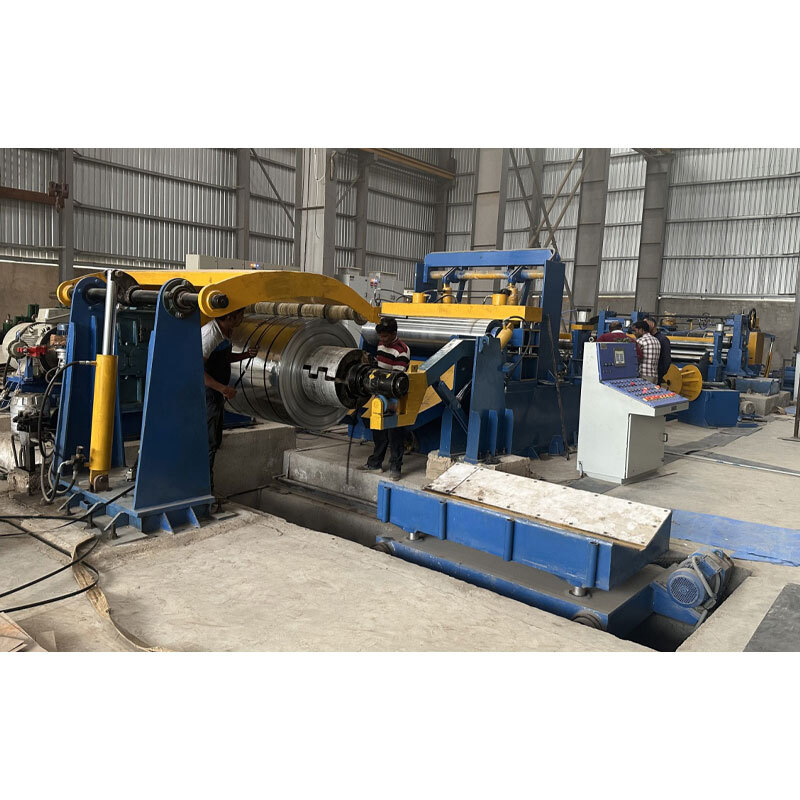

We are one of the Leading manufacturer & exporter of quality Slitting Machine, Slitting Line, CR Coil Slitting Line, HR Coil Slitting Line from Ghaziabad, India. Our Slitting machine and Slitting Lines are generally used for jobs like slitting of various metal such as Cold/Hot rolling coils, Stainless steel coils, Tin Plate coils, PPGI/GP/Alumunium coils with adjustable speed & size.We are manufacturing & exporting Slitting Machine, Slitting Line, CR Coil Slitting Line, HR Coil Slitting Line to various countries including, UAE, Dubai, Abu Dabhi, Tanzania, Mexico, Nigeria, Uganda, South Africa, Vietnam, Turkey, Romania, Bangladesh, Nepal, Australia, Turkmenistan & Many More.
Our product is widely used for slitting of different metals like Carbon steel, Stainless steel, Brass, Copper, Aluminum etc. Furthermore, it is widely used in different industries for strip processing and coil handling purposes.
Features:
- Types- Single loop/Double loop/without loop.
- Can slit coils with thickness range - 0.20 mm to 6.0 mm & width range- 500 mm to 2000 mm.
- Coil Weight can vary between 5.0 -30 MT.- input/ out put
- Minimum burr in strip.
- High running accuracy of knife at arbours.
- Constant parallel distance between the last deflector roll and re-coiler drum.
- Capable of running up to 120 MPM.
- Economically efficient due to high automation level.
- Onsite installation
De-coiler & Un-coiler Unit
The de-coiler/uncoiling unit of our Slitting line allows several coil stocks to be pre-placed on the loading station. It is available with single head or double heads to suit different requirements.
Snubber & Pillar Table Assembly
Snubber is used for pressing the coil O.D. Snubber can be operated either hydraulically or pneumatically. Hydraulically operated pillar table facilitates the entry of sheet into straightener/leveller.
Sheet Leveller
The leveler is used to level the coil to desired flatness range. The feed rolls make the entry & exit of sheet from straightener easy. The rolls can be adjusted manually, hydraulically or by motor. Rolls are hardened to HRC 55-60. Provides good abrasion resistance & long service life.
Shearing Unit
Entry or Exit Shearing is provided according to customer's requirement. This unit is hydraulic.
Slitter Assembly
The coil is cut width wise as required by the cutters provided in the slitter assembly. The slitter is provided with feed rolls for facilitating the entry & exit of sheet. Separator is provided for providing a gap between slits.
Pinch Roller / Pressure Pad & Deflector Rolls
These are used for tightening & ease the rewinding of slitted coil.
Re-Coiler Unit
This unit rewinds the slitted coils into baby coils. Unit is provided with drive. Separator is also provided in this unit.
Coil Car - Entry & Exit
Coil Car/ Lifter eases the work of un-loading the slitted coils from Re-coiler's Jaws. Coil Car is power driven and can move to & from on rails. Coil Car move up & down by hydraulic cylinder. For light coils, coil hanger can be used
Scrap Winders
Driven by A/C geared motor/hydraulic motor to rewind the scrap.
The de-coiler/uncoiling unit of our Slitting line allows several coil stocks to be pre-placed on the loading station. It is available with single head or double heads to suit different requirements.
Snubber & Pillar Table Assembly
Snubber is used for pressing the coil O.D. Snubber can be operated either hydraulically or pneumatically. Hydraulically operated pillar table facilitates the entry of sheet into straightener/leveller.
Sheet Leveller
The leveler is used to level the coil to desired flatness range. The feed rolls make the entry & exit of sheet from straightener easy. The rolls can be adjusted manually, hydraulically or by motor. Rolls are hardened to HRC 55-60. Provides good abrasion resistance & long service life.
Shearing Unit
Entry or Exit Shearing is provided according to customer's requirement. This unit is hydraulic.
Slitter Assembly
The coil is cut width wise as required by the cutters provided in the slitter assembly. The slitter is provided with feed rolls for facilitating the entry & exit of sheet. Separator is provided for providing a gap between slits.
Pinch Roller / Pressure Pad & Deflector Rolls
These are used for tightening & ease the rewinding of slitted coil.
Re-Coiler Unit
This unit rewinds the slitted coils into baby coils. Unit is provided with drive. Separator is also provided in this unit.
Coil Car - Entry & Exit
Coil Car/ Lifter eases the work of un-loading the slitted coils from Re-coiler's Jaws. Coil Car is power driven and can move to & from on rails. Coil Car move up & down by hydraulic cylinder. For light coils, coil hanger can be used
Scrap Winders
Driven by A/C geared motor/hydraulic motor to rewind the scrap.
